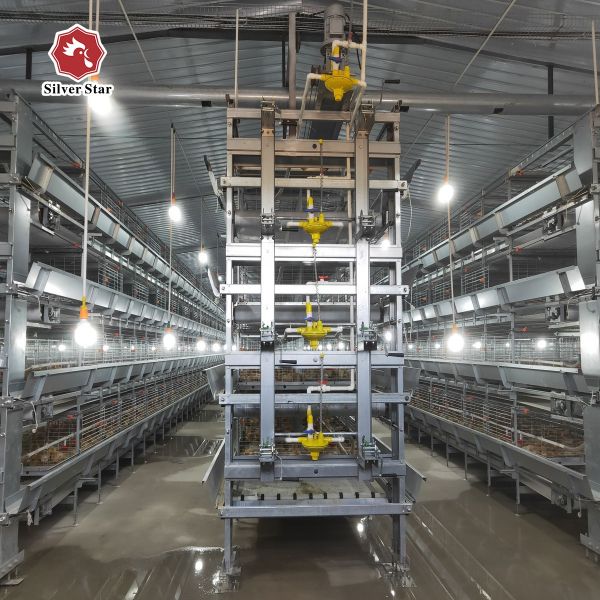

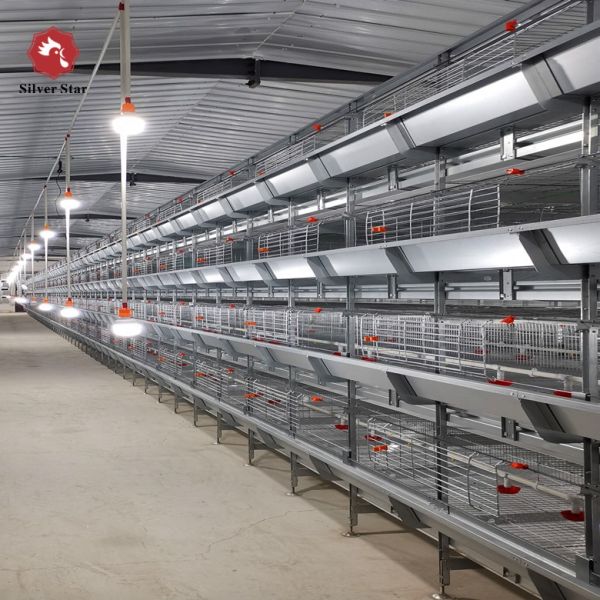

Hot-Dipped Galvanized Steel Fully Automatic Broiler Cage System with 3 or 4 Tiers for Poultry Farming

Product Categories

Battery Chicken Cage [292]
Layer Chicken Cage [407]
Broiler Chicken Cage [172]
Baby Chick Cage [139]
Poultry Cage [265]
Broiler Equipment [45]
Automatic Poultry Feeding System [39]
Poultry Drinking System [26]
Poultry Manure Removal System [33]
Poultry Egg Collection System [29]
Poultry Environmental Control System [16]
Poultry Farming Equipment [42]

Henan Silver Star Poultry Equipment Co.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Hot-Dipped Galvanized Steel Fully Automatic Broiler Cage System with 3 or 4 Tiers for Poultry Farming

Cage Material : Q235 National Bridge Steel Wire

Automatic Feeding System : Yes

Material : Galvanized Steel

Designtype : Stackable

Installation : Easy assembly with bolts

Item : battery cage hens

Cleaningmethod : Removable droppings tray

Cage Levels : 3 or 4 Tiers

Ventilation : Good airflow design

Weight : 25 kg

Egg Collecting System : Automatic Egg Collecting System

Usage : Commercial poultry farming

Feedingsystem : Automatic feeding trough

Feature : Durable

Condition : New

Contact Now

Product Description

Hot-Dipped Galvanized Steel Fully Automatic Broiler Cage System with 3 or 4 Tiers for Poultry Farming

Design Broiler Chicken Cages For Sale/Chicken Meat Broiler Cages with Automatic Poultry Feeding

(1)Tiers:3,4, leves/floors(2)Material:Q235 Hot-Dipped Galvanized,Zinc thickness: 275g/㎡
(3)Frame:Material of leg of frame is hot-dip galvanized steel with thickness: 2mm
(4)Feed trough:Material: hot-dip galvanized steel. Thickness: 1.0mm.
(5)Design:Fully Automatic Poultry Broiler Chicken Cage Equipment
(6)Fully Automatic System Including Meat Chicken Farm Broiler Chicken Poultry Battery Cages Body,Broiler Bird Chicken Cage Frame,Feeders,automatic drinking system,on-rail hopper feeding system,manure removal stystem,chicken harvesting system,Ventilation System etc

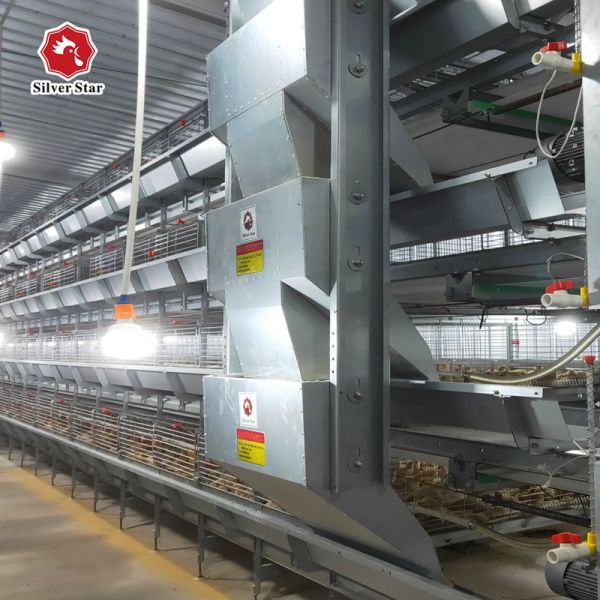

Automatic On-Rail Hopper Feeding Machine Equipments

Hopper:Each tier with two hoppers, thickness is 1.2mm, material is hot-dip galvanized steel2.Traction Device :Power of motor:0.75kw,tow rope: pp rope with 14mm,speed:8.67m/minute.
Track of Trolley:Hot-dip galvanized steel with 48mm*2.75mm.
Head and end frame:Hot-dip galvanized steel with 40mm*60mm*3mm.

Silo&Feed Uploading Machine Equipments

Capacity:4tons,8tons,10tons,13tons,15tons,20tons,33tons 2.Thickness:3mm thickness hot galvanized steel
Feed density0.65ton/m3.Material of silo is galvanized steel (275g) ,which is anti-erosive and ensures the long service life
Feed weighing device can be installed if required to control the feed amount consumed by layers
Auger Feed Uploading Device:Hot-Dipped Galvanized

Plastic Slat/Floor

1.Material:Polypropylene,good flexibility2.Use:Floor can be pulled out when catching the chicken

Large Living Space&Large Door

Advantage:Easier to catch the birds if in manual way;And helps birds live comfortably and grow heathily

Space between two levels of cages

650mm/800mml;Advantage:Better air circulation to reduce the diease

Front Drinking Lines

Nipple Drinkers 2.Water Pipes
Water Pressure regulator
Filter
Medical pump

Nipple Drinkers&Water Pipes

1.Water flow: 30-40ml2.No water splashing or leaking, the bird house is dry and clean.
3.25mm*2mm PVC round pipe,resistance 90°bending with seven times.

Reducing Valve

1.With double back-flushing system2.Working pressure:0.1-0.4Mpa.
3.Water flow at working mode is 20kg/min.

Automatic Manure/Waste Cleaning Machine Equipments

1.Belt type manure cleaning machine:Hot-dip galvanized 3mm side plate,chain safety door with 1mm hot-dip galvanized steel, running speed 3m/min.1.5KW2.Manure cleaning belt:Material is PP, which has high tensile strength to ensure a long service life.Thickness is 1.2mm.Width is 1.2m.
3.Bracket for manure cleaning belt:Material is hot-dip galvanized steel, thickness is1.5mm.

Crosswise Manure/Waste Conveyor

Transverse manure conveying :Each house is with 1 set, transverse and slope conveying is separate, the material is 5mm angle steel welded. Manure belt: rubber belt with 8mm thickness. The transverse manure conveying system adopts rubber conveying belt. There is no leak of manure during the transportation.

Ventilation Fans

1.Fan frame: Hot-dip galvanized steel with Zinc thickness 275g/m2.
2.Blade: 430BA stainless steel with 1.2mm thickness sheet.
3.50"Fans
Size:1380x1380x450mm
Airflow:44000m3/h
380V/ 50HZ /1.1KW

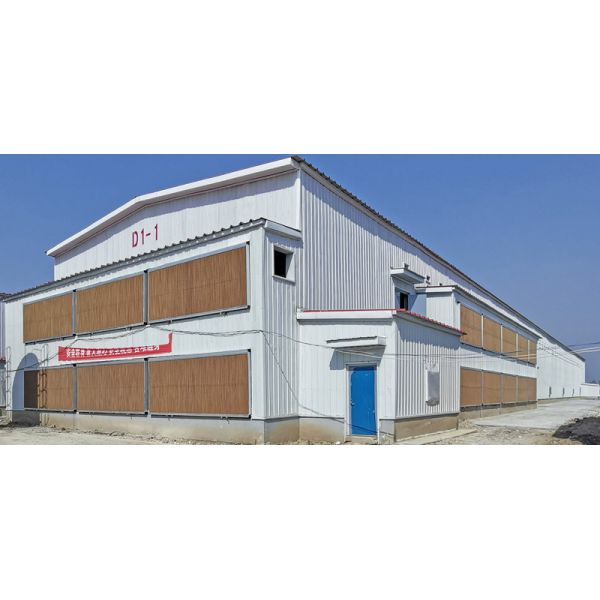

Cooling Pad

Thickness:150,200mm 2.Length:1500,1800,2000,2500mm or as customers' request
Frame:Galvanized Or Aluminimum
Water Recycling System Included

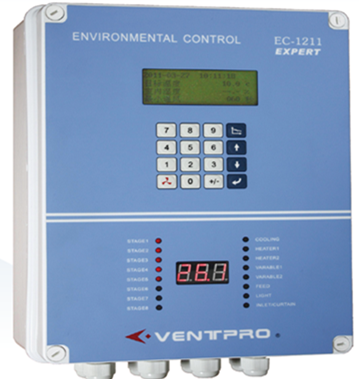

Environmental Controller

EC-1211 Environmental Controller 1.Box Size:305x228x120mm
waterproof box
2.Multi-functions
3.High quality and application

Roof Fans

Diameter:80cm 2.Material:Stainless Steel
Application:Poultry House
No electricity need,no noise,can work in the long way.

Heaters

Heaters can be used in electricity or fuels,as customers' request Apply for poultry brooding broiler house

Title goes here.

1.Size:560x270mm 2.With anti-bird mesh,during minimum ventilation mode, fresh air comes into the house through air inlets
3.Can be controlled automatically or manually

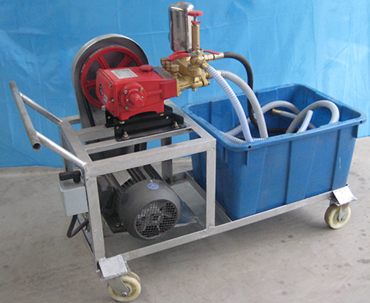

Fogging Machines Equipments

Pressure:4.0mpa/㎡ 2.Water flow:80L/min
Motor Power:4KW,380V
Water Volume:160L


Specification

Automatic Chicken Harvesting H Type Farm Equipments for Broilers		Manual Chicken Harvesting H Type Farm Equipments for Broilers
Material	Hot Dip Galvanized Steel	Material	Hot Dip Galvanized Steel
Tiers	3 or 4 Tiers	Tiers	3 or 4 Tiers
Capacity	156 birds or 208 birds	Capacity	96 birds or 128 birds
Size	1480mm1750mm440mm	Size	1300mm1250mm430mm
Area of per Chicken	498cm2	Area of per Chicken	508cm2
If You Don't Know How to start your farming plan ,Plz Click Here contact our service .We will give the best solutions as per your plan Plan for 2000birds Plan for 10000birds Plan for 30000birds Plan for 100000birds etc
